Anexa.ST.12 Dimensiuni siguranțã elasticã pentru arbore(extras din DIN 6979)
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

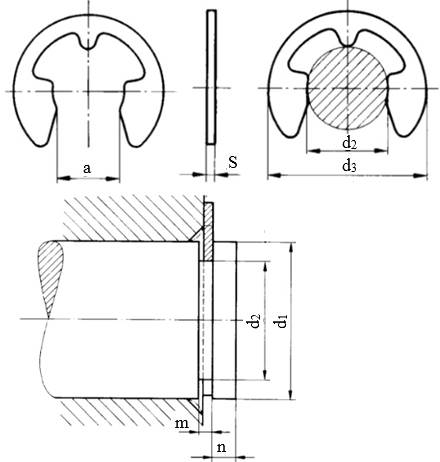

Formã și dimensiuni
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Dimensiunea, d2 |
d1 |
s |
a |
m |
n (min) |
d3 (max) |
|
|
Max |
Min |
||||||
|
4 |
5 |
7 |
0,7 |
3,34 |
0,74 |
1,2 |
9,3 |
|
6 |
6 |
8 |
0,7 |
4,11 |
0,74 |
1,2 |
11,3 |
|
7 |
8 |
11 |
0,9 |
5,84 |
0,94 |
1,5 |
14,3 |
|
8 |
9 |
12 |
1 |
6,52 |
1,05 |
1,8 |
16,3 |
|
9 |
10 |
14 |
1,1 |
7,63 |
1,15 |
2 |
18,8 |
|
10 |
11 |
15 |
1,2 |
8,32 |
1,25 |
2 |
20,4 |
|
12 |
13 |
18 |
1,3 |
10,45 |
1,35 |
2,5 |
23,4 |
|
15 |
16 |
24 |
1,5 |
12,61 |
1,55 |
3 |
29,4 |
|
19 |
20 |
31 |
1,75 |
15,92 |
1,8 |
3,5 |
37,6 |
|
24 |
25 |
38 |
2 |
21,88 |
2,05 |
4 |
44,6 |
Notare în desenele de ansamblu
Siguranțã elasticã pentru arbore d2 DIN 6979 (ex. Siguranțã elasticã pentru arbore 10 DIN 6979)
